Braided Sleeving

PETS Self-Closing Braided Abrasion-Resistant Sleeve

Designed for UAV harness protection
DETAIL

Applications

PETV Wraparound braided sleeving for automotive wire assembly

Specially designed for UAV carbon fiber fuselage wire harness protection. Made of high-strength polyester fiber braid with a self-closing design for quick installation. Provides abrasion resistance, vibration damping, noise reduction, lightweight, and flame-retardant properties, effectively preventing wire damage and noise caused by friction with carbon fiber during flight, enhancing flight reliability.

UAV carbon fiber fuselage wire harness protection

Power cables, signal cables, sensor/gyroscope harness management

Reduces friction noise between wire harnesses and carbon fiber structures

Operating temperature : -40℃ ~ 150℃

Abrasion protection in high-frequency vibration environments

Other colours size re available on request


Characteristic

Self-closing design: easy for cable routing and maintenance, quick installation

High abrasion resistance: protects harnesses from carbon fiber friction damage

Lightweight: extremely low weight structure

Flame-retardant rating UL94 V-1: improves flight safety

Vibration damping and noise reduction: reduces friction sound during flight

Excellent flexibility: maintains harness bending without impact

RoHS compliant

Optional surface treatments: smooth coating or low-friction liner for further abrasion/noise reduction; metallized/conductive coating for enhanced EMI shielding (custom development available)

※ For edges in direct contact with carbon fiber, thin buffer pads or low-friction liners can be added at the contact points to extend cable lifespan

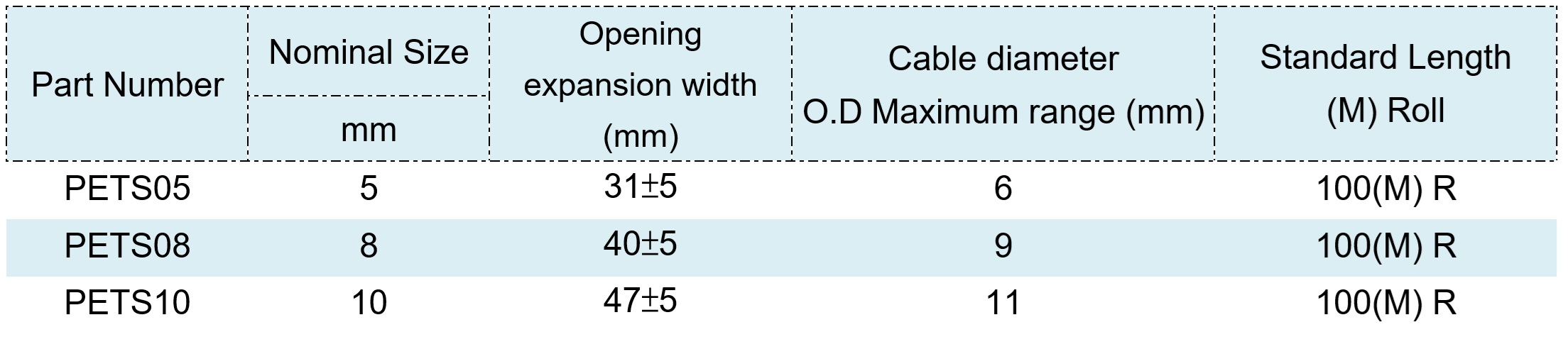

Specification(Standard color:Black)

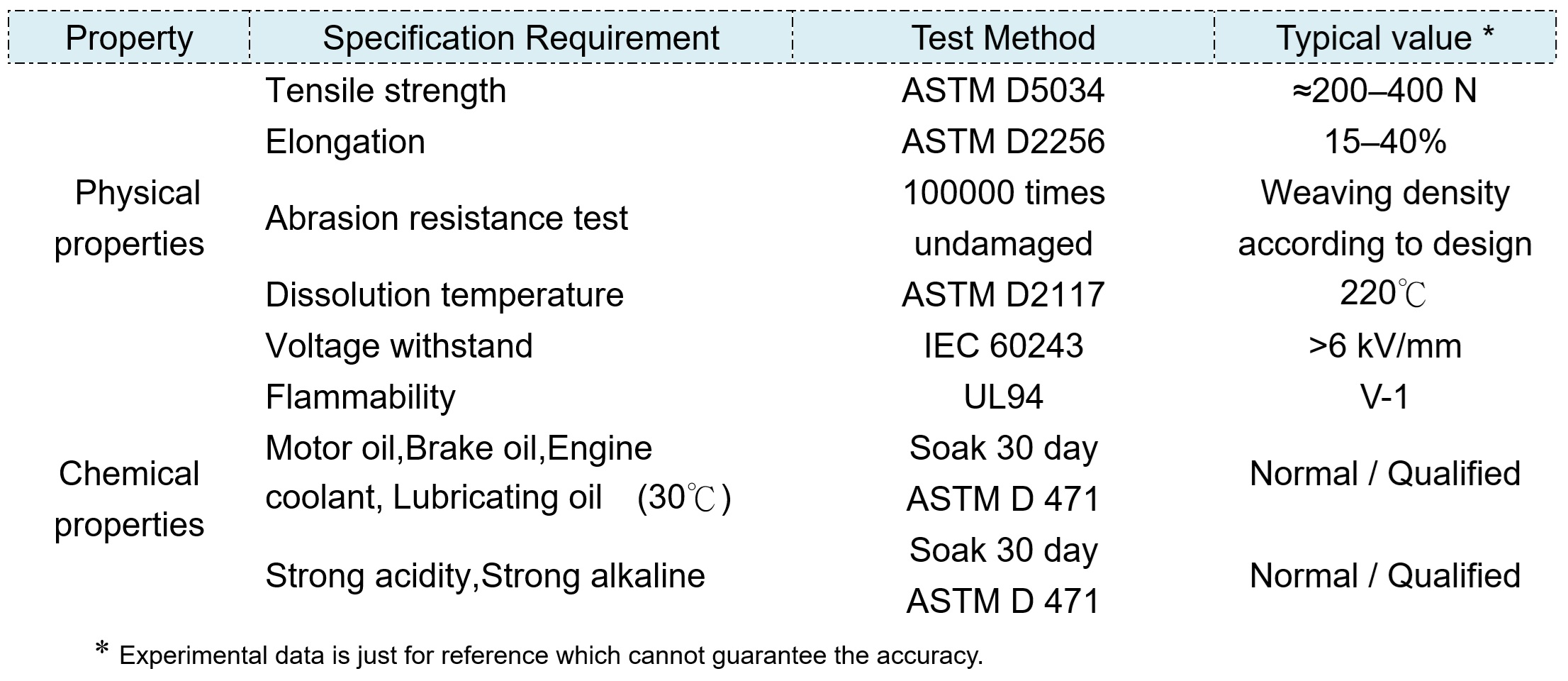

Technical data
