Thin Wall General Purpose Low Voltage Heatshrink

K2 General purpose heat shrinkable sleeve

DETAIL

Applications

Widely used in cable insulation protection, wire coating processing and insulation protection of those "General products in market".

Properties of solder joint protection, cladding of electronic components, insulation protection of resistors and capacitors

Anti-rust and corrosion treatment of metal products, vibration reduction treatment of shock

Operating temperature : -55℃ ~ 125℃

Characteristic

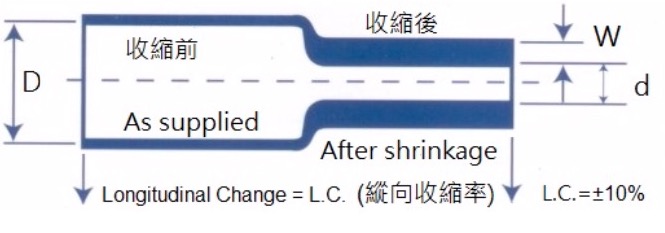

Shrinkage ratio  2:1

Minimum fully recovery temperature : 70˚C~110˚C

Burning with low smoke to ensure the refuge view and increases the escape time

Meet RoHS、UL requirement

It is very soft and with high flame retardant performance

Excellent properties of mechanical /chemical /weather resistance / electrical

Other colours size re available on request

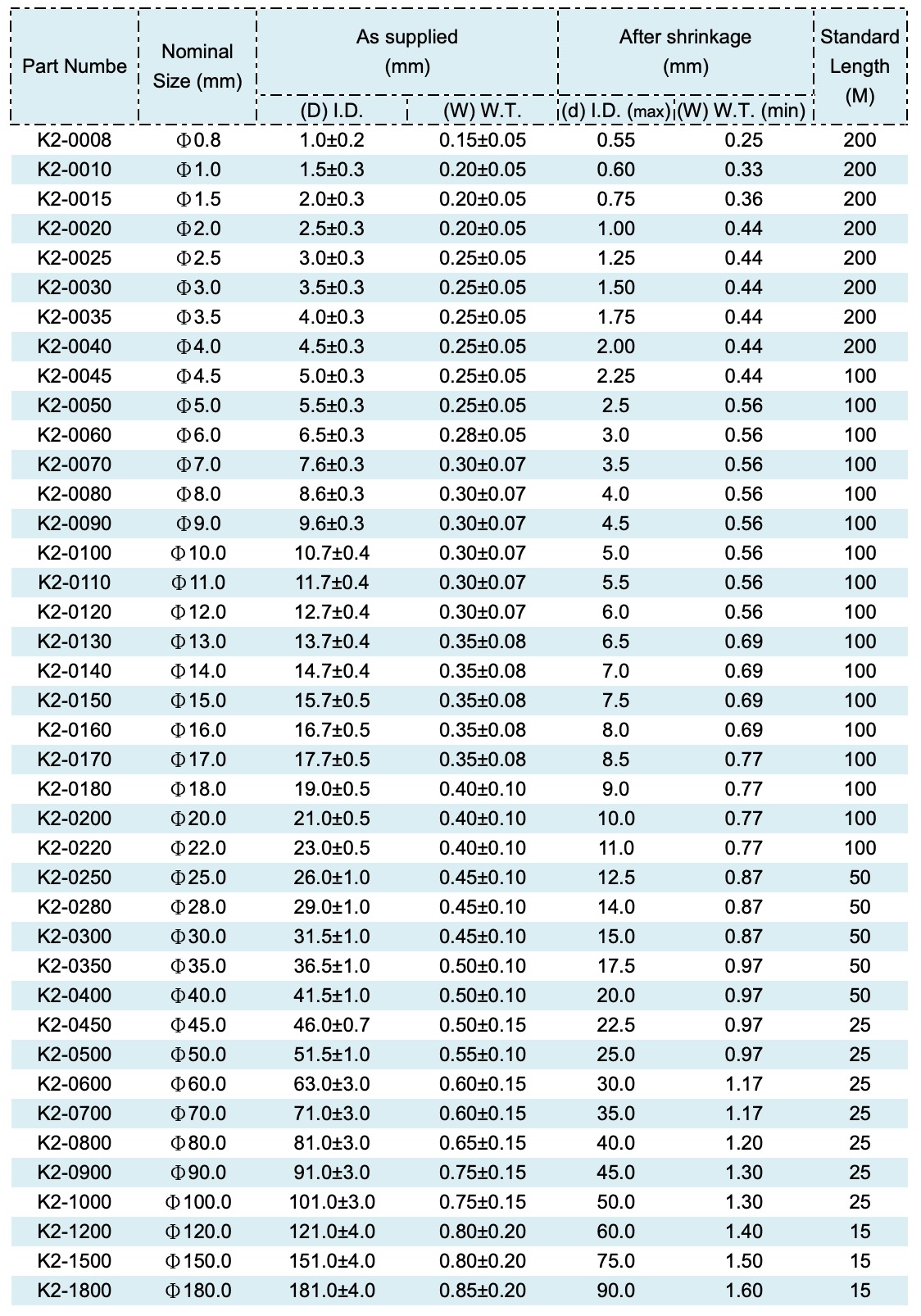

Specification(Standard color:BK、WT、RD、BU、YL、GN)
35mm ~ 180mm (35mm included) is without printing (blank tube)

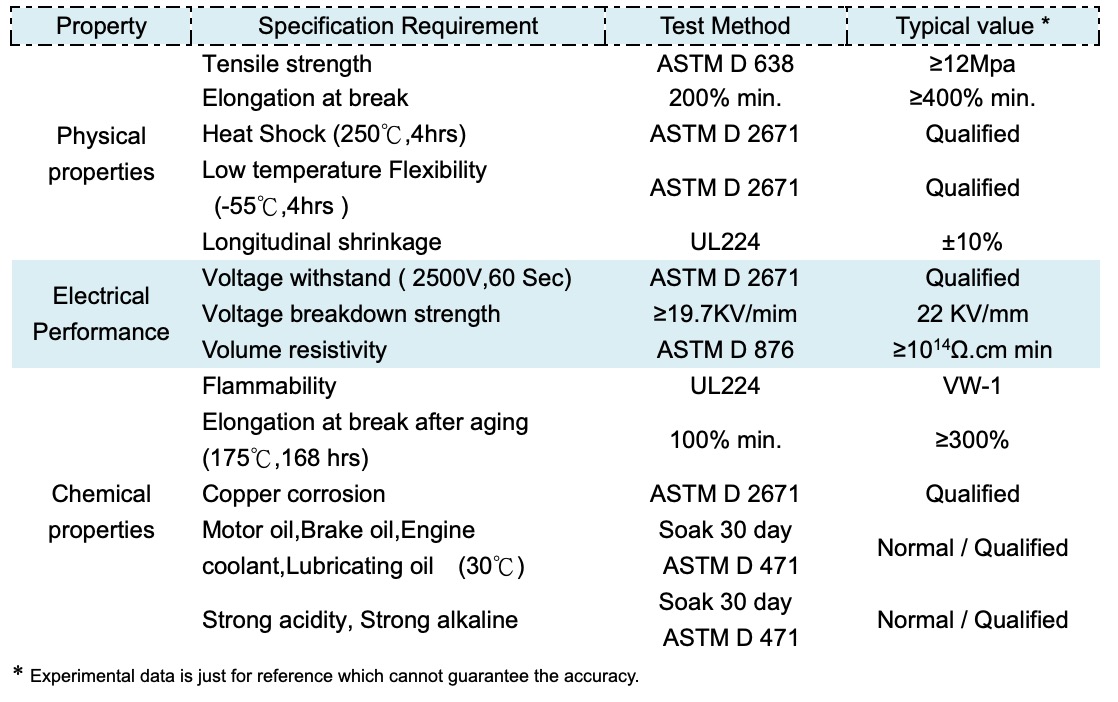

Technical data
