Thin Wall General Purpose Low Voltage Heatshrink

FPVC High-flame retardant heat shrinkable sleeve

Operating temperature : -30℃ ~ 105℃
DETAIL

Applications

FPVC High-flame retardant heat shrinkable sleeve

Wire harness insulation protection for home appliances, automobiles and motorcycles

Insulation protection of electronic components

Excellent electrical and mechanical properties

Operating temperature : -30℃ ~ 105℃

Characteristic

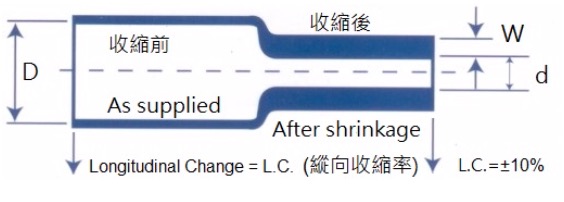

Shrinkage ratio 1.6:1

Minimum fully recovery temperature : 70˚C~90˚C

Translucent and shrinkable with heat

Meet VW-1 requirement

Comply to the green environmental protection standards:D3421-75,SRS-046,EN1122,
EPA3052,EPA3050B,EPA3060,EPA7196

Used for low voltage power cables of various specifications

Certification/ comply to standard gb8815-88

Meet RoHS requirement

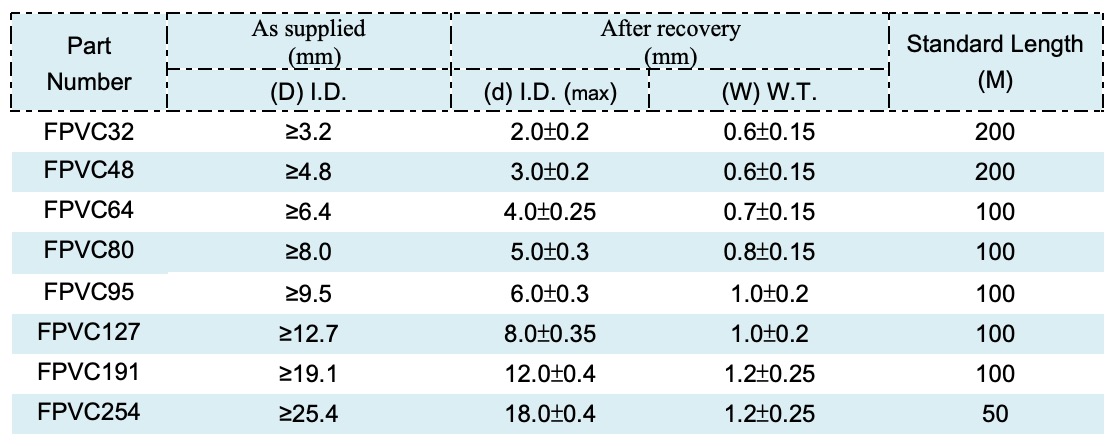

Specification(Standard color:multicolour)

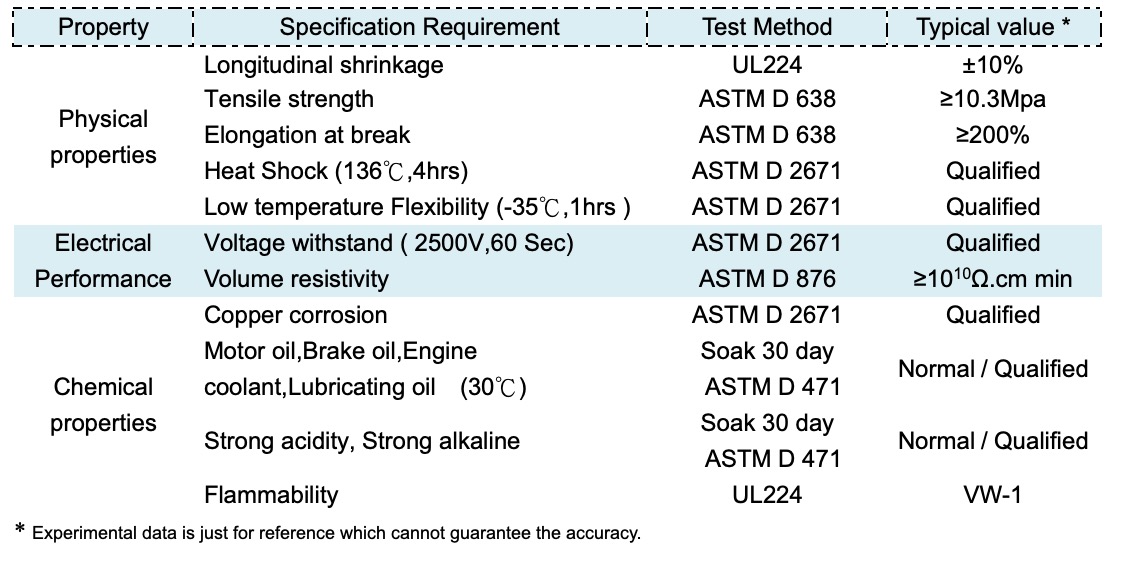

Technical data
