Braided Sleeving

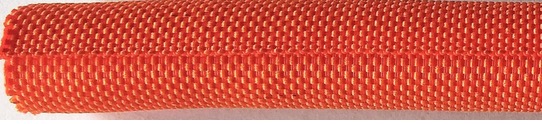

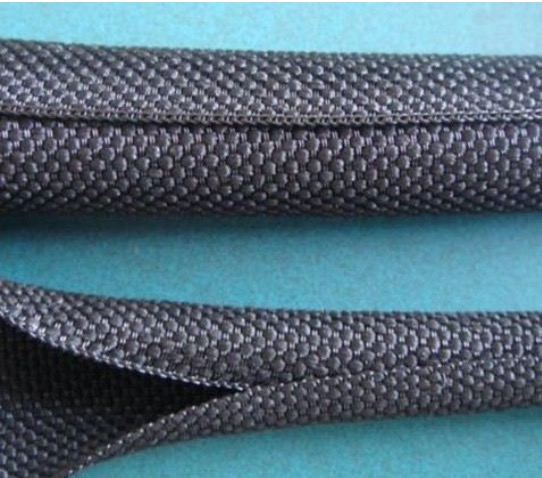

PETV Wraparound braided sleeving for automotive wire assembly

DETAIL

Applications

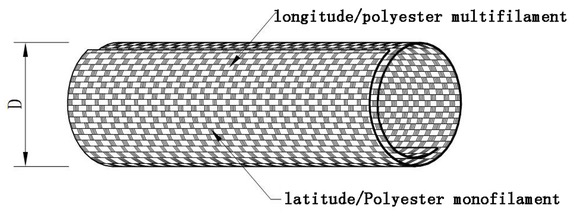

Formed by environment-friendly and flame- retardant polyester monofilament + polyester multifilament

Suitable for the protection of various wire harnesses of high-speed rail industry, automotive industry, communication industry, automation equipment, etc., especially good for those field with irregular shape wire harness.

Bright-surface, beautiful and wear-resistant

Operating temperature : -40℃ ~ 150℃

Melting point:230℃

Other colours size re available on request

Characteristic

Excellent flame and wear resistance and convenienc

The open structure facilitates harness protection, reassembly, maintenance and overhaul
With properties of acid resistance, corrosion resistance, dust resistance, fire resistance, softnessBurning with low smoke to ensure the refuge view and increases the escape time

Light weight /Weather resistant/Anti-UV
Suitable for both round and flat lines

Can be perforated at any position without damaging the casing itself

It has excellent ability to suppress smoke and toxic gases during burning.

Meet RoHS requirement

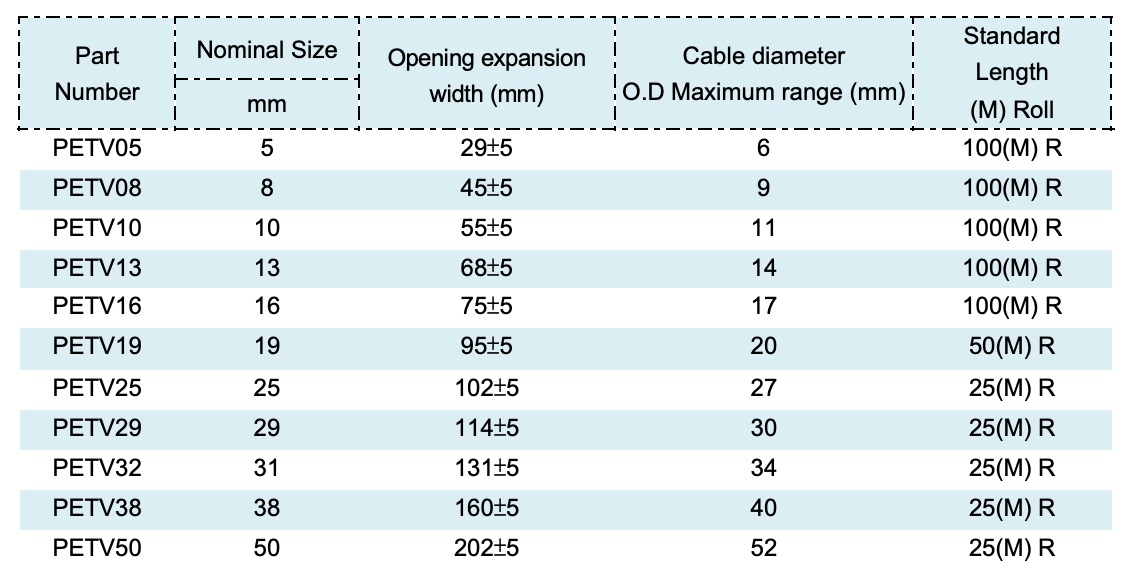

Specification(Standard color:Black)

Technical data
