Heatshrink Moulded Shapes

LEC-Heat shrinkable cable end cap

Operating temperature : -50℃ ~ 110℃
DETAIL

Applications

LEC Heat shrinkable  cable end cap

The inner of the sealing cap is coated with spiral hot melt glue, which provides excellent moisture-proof, anti-bacteria and anti-erosion functions.

Used for the sealing protection of power cable and communication cable end cut

It can also be used for end connections of screws, street lamps or steel pipes for sealing.

Operating temperature : -50℃ ~ 110℃

Characteristic

Shrinkage ratio 2:1

Withstand voltage 1KV

Minimum fully recovery temperature : 80˚C~120˚C

Optional nozzle is OK to use for nitrogen filling

Suitable for long-term outdoors use, anti-UV

Easy to install and it can be heated by open fire

Wear-resistant, and it is tough enough to avoid puncture problems

Meet RoHS requirement

Other colours size re available on request

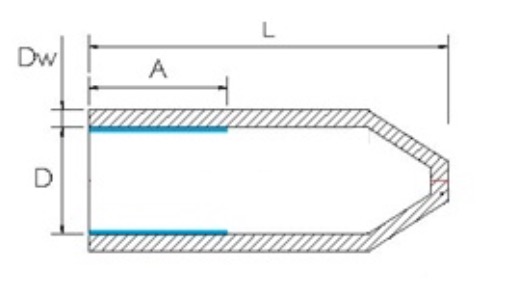

Specification(Standard color:Black)

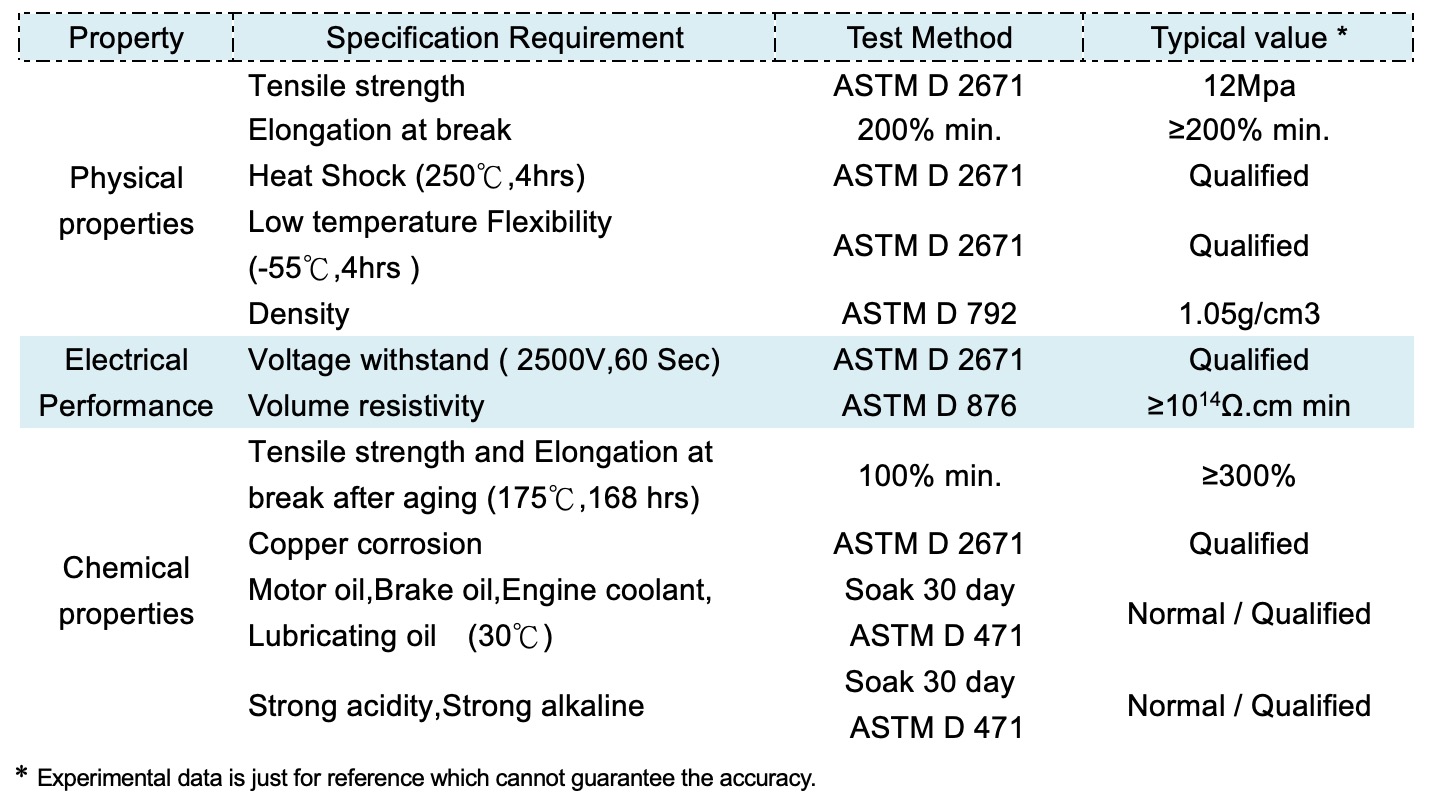

Technical data
