Fiber Optic Heat Shrinkable Tubing

FOSP-Heat Shrinkable Fiber Optic Splice Protector

Operating temperature : -45℃ ~ 105℃
DETAIL

Applications

FOSP Heat Shrinkable  Fiber Optic Splice Protector

The optical fiber cladding can be reconstructed and provides good mechanical strength at the connection to ensure good optical transmission performance

Operating temperature : -45℃ ~ 105℃

Characteristic

Shrinkage ratio 2:1

It is composed of SUS304 steel rod, hot-melt pipe and cross-linked polyolefin

Light and weather resistant

Transparent sleeves provide better connectivity before shrinking

The excellent steel rod performance can help to protect the optical fiber

Meet RoHS requirement

Minimum fully recovery temperature :90˚C~120˚C

Other colours size re available on request

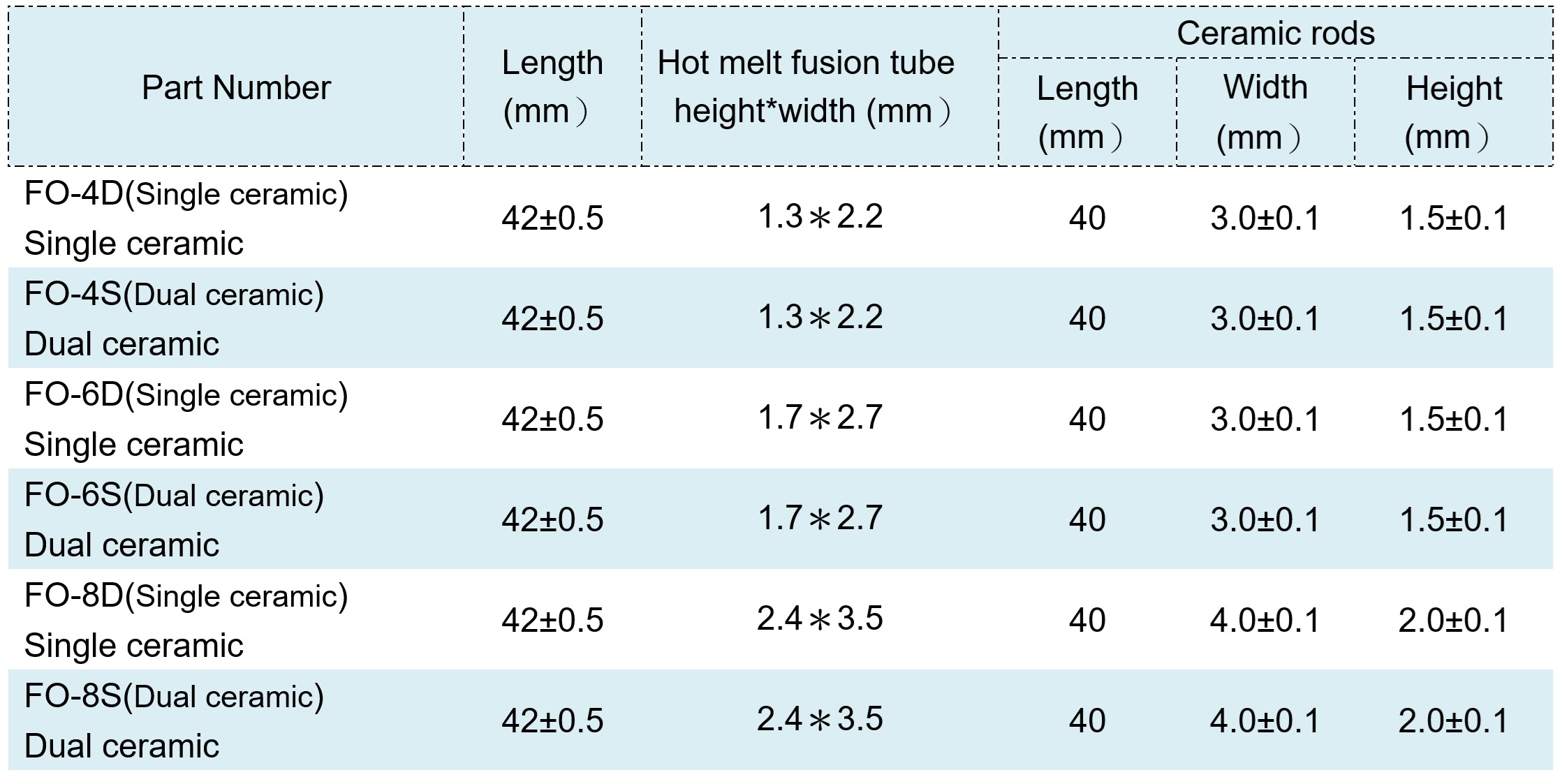

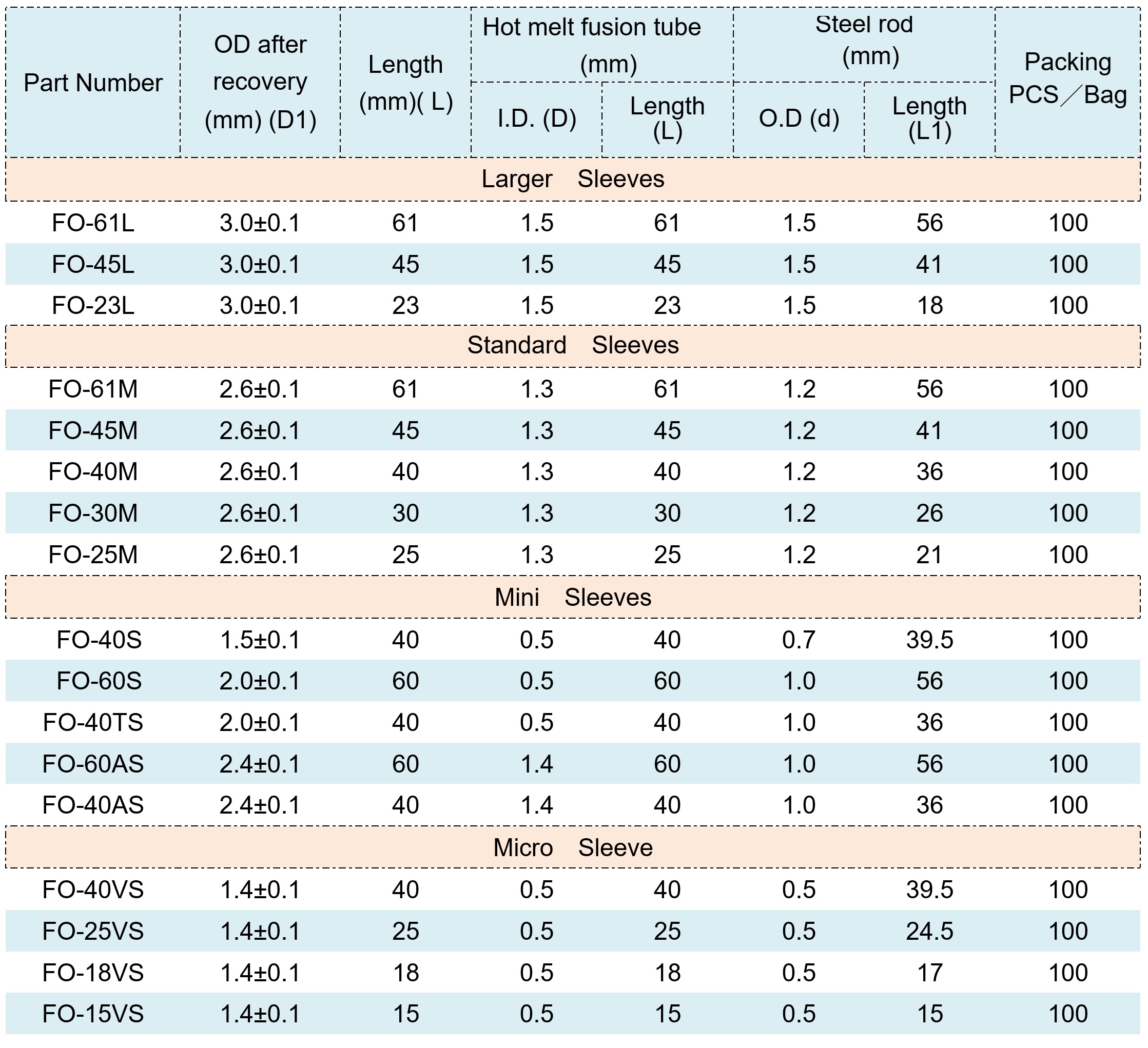

Specification(Standard color:Clear)

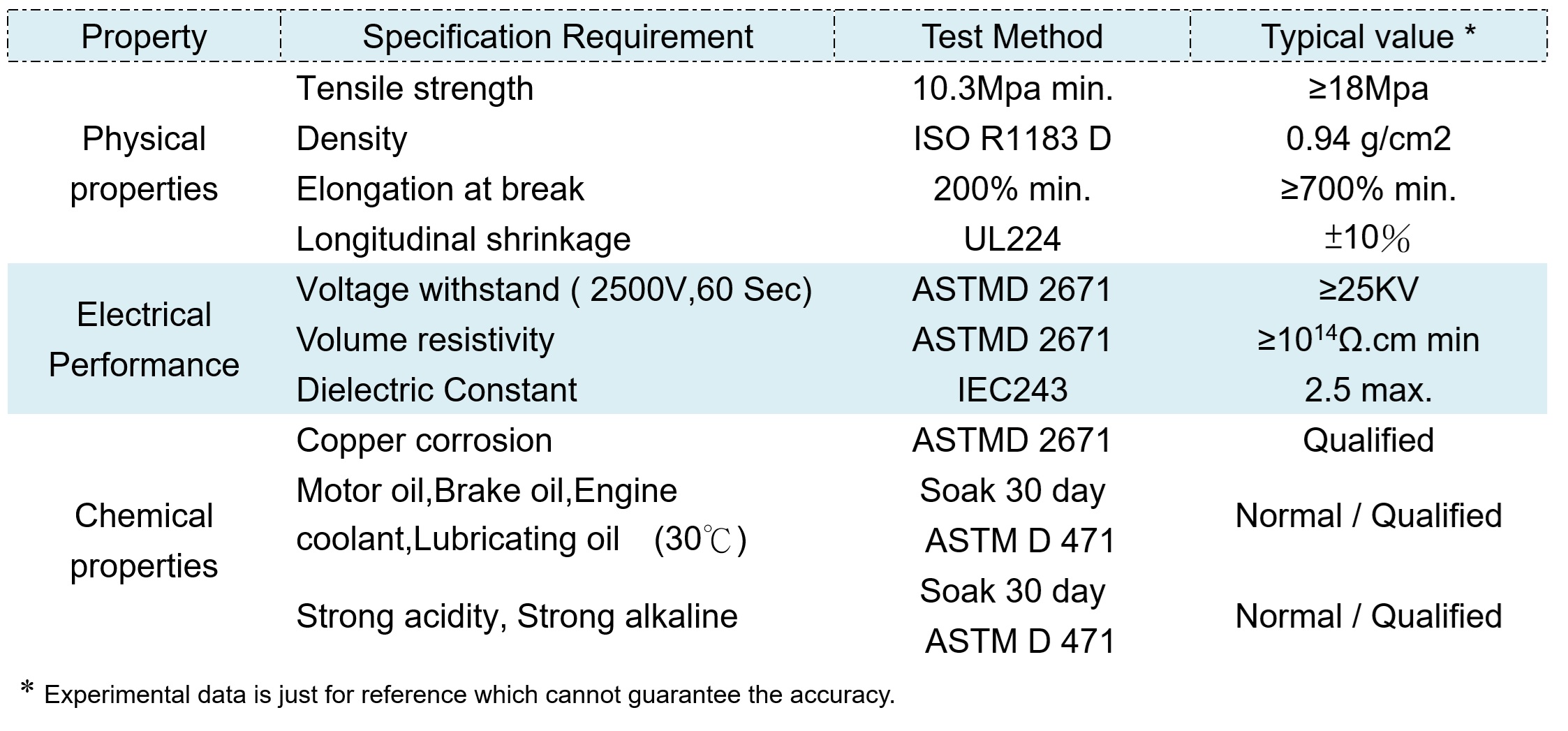

Technical data
