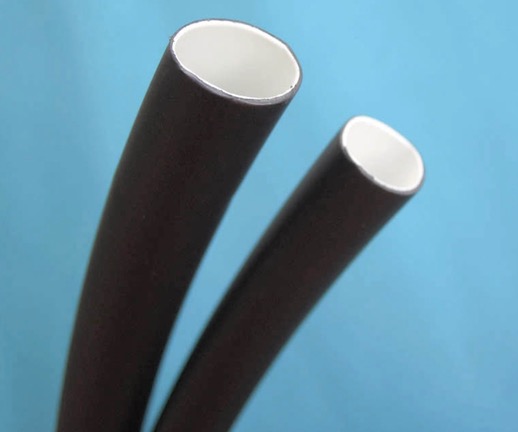

Adhesive-Lined Heat Shrink Tubing

DWA－High temperature-resistant and flame-retardant hot-melt glue heat-shrinkable sleeve (the outer cover is rigid wear-resisting polyolefin)

Use of automotive battery module wiring harness

DETAIL

Applications

DWA High temperature-resistant and flame-retardant hot-melt glue heat-shrinkable sleeve

Made of semi-rigid polyolefin and hot melt glue, it is suitable for waterproof and insulating protection of wiring harness of automobile and electronic equipment.

With high magnification shrinkage, it can be used as waterproof protection for multiple wire harness, wire and connector connection parts, etc

Operating temperature : -40℃ ~ 150℃

Characteristic

Highshrinkage ratio 4：1

Hot-melt glue with flame-retardant inner layer

Minimum fully recovery temperature :110˚C～150˚C

Meet RoHS requirement

SAE-AMS-DTL-23053/4

Excellent properties of mechanical /chemical /weather resistance / electrical

Other colours size re available on request

Specification（Standard color：Black）

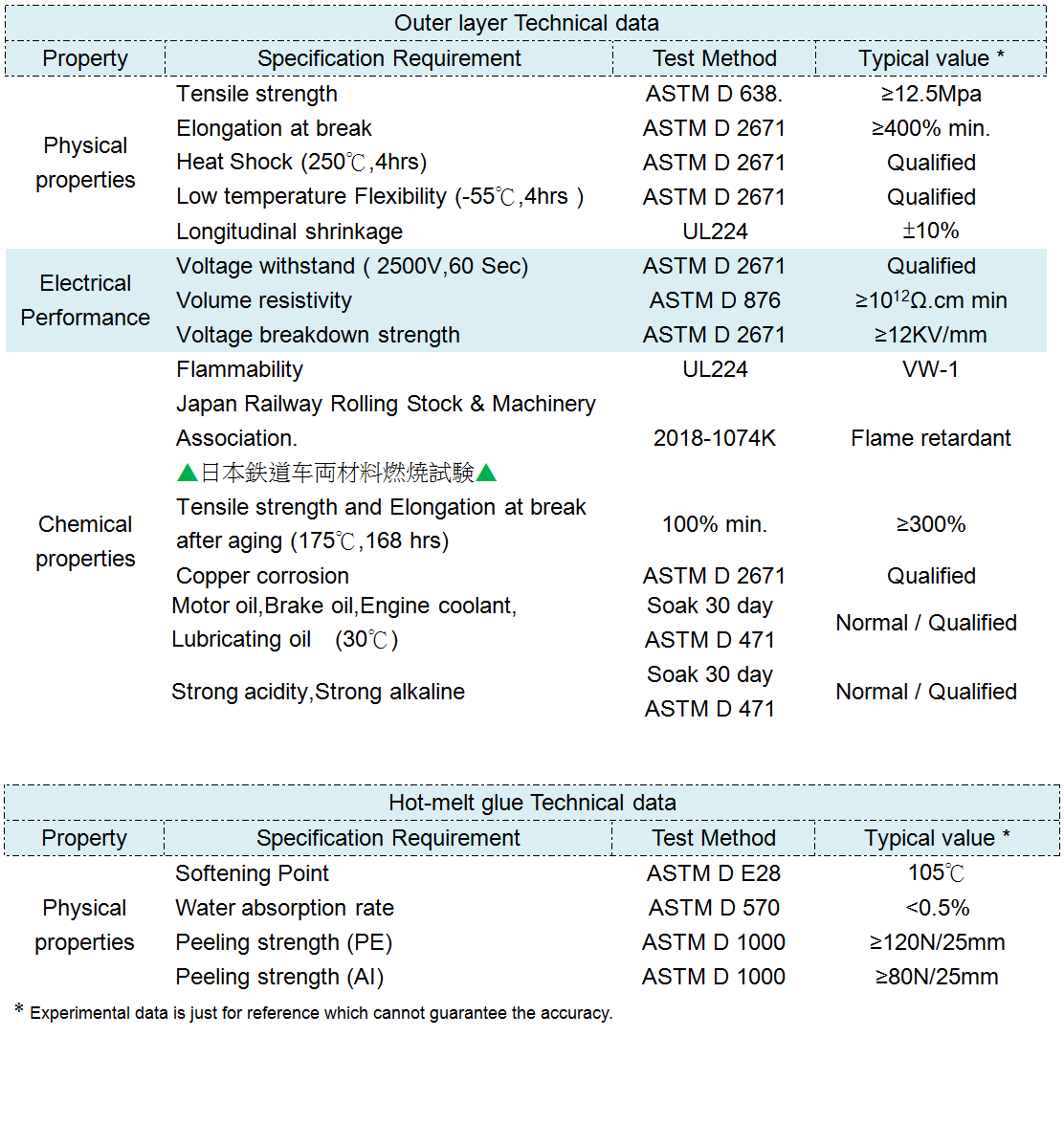

Technical data
