Adhesive-Lined Heat Shrink Tubing

DWB-High-flame retardant hot melt glue shrinkable sleeve

Operating temperature : -40℃ ~ 135℃
DETAIL

Applications

DWB High-flame retardant  hot melt glue shrinkable sleeve

Made of semi-flexible polyolefin and special environment-friendly flame-retardant hot melt glue, it is suitable for waterproof and insulating protection of wiring harness of automobile and electronic equipment.

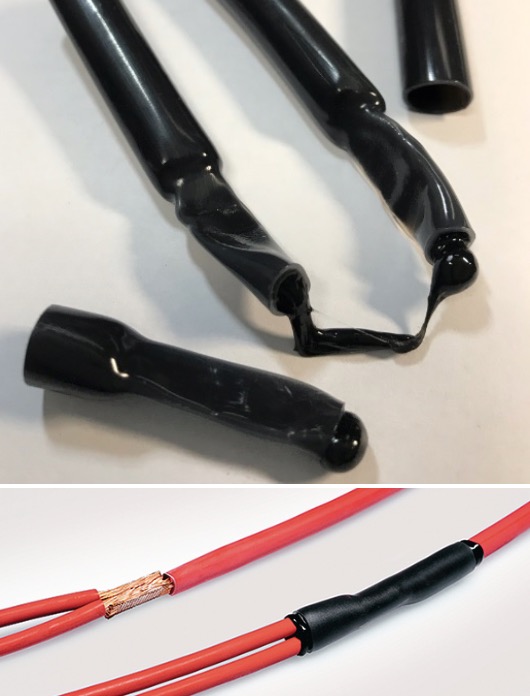

With high magnification shrinkage, it can be used as waterproof protection for multiple wire harness, wire and connector connection parts, etc

Operating temperature : -40℃ ~ 135℃

ContrastTE Raychem、DSG-CANUSA

Characteristic

Highshrinkage ratio 2.5:1

Meet RoHS requirement

Meet SAE-AMS-DTL-23053/4 requirement

20% glue increased, excellent sealing protection

Excellent properties of mechanical /chemical /weather resistance / electrical

Minimum fully recovery temperature : 100˚C~120˚C

VW-1 high -flame retardant and environmental- friendly hot melt glue

Resistance Acid /alkali /oil/ dirty resistant

Metal pipes prevent corrosion and water leakage

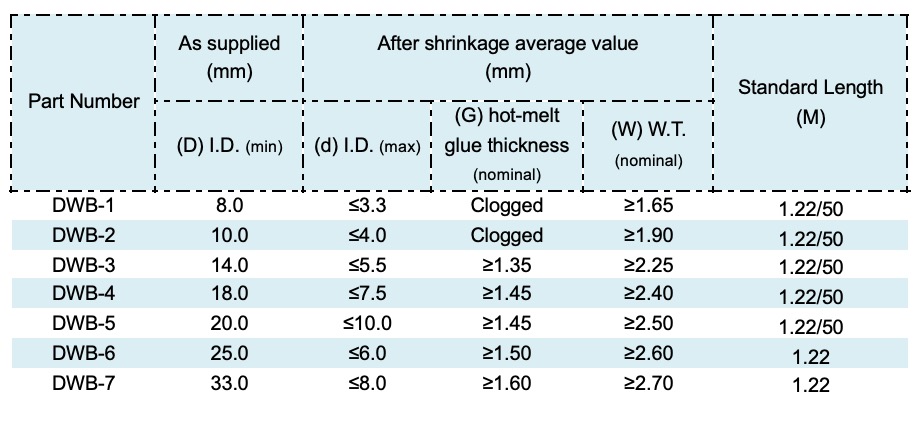

Specification(Standard color:Black)

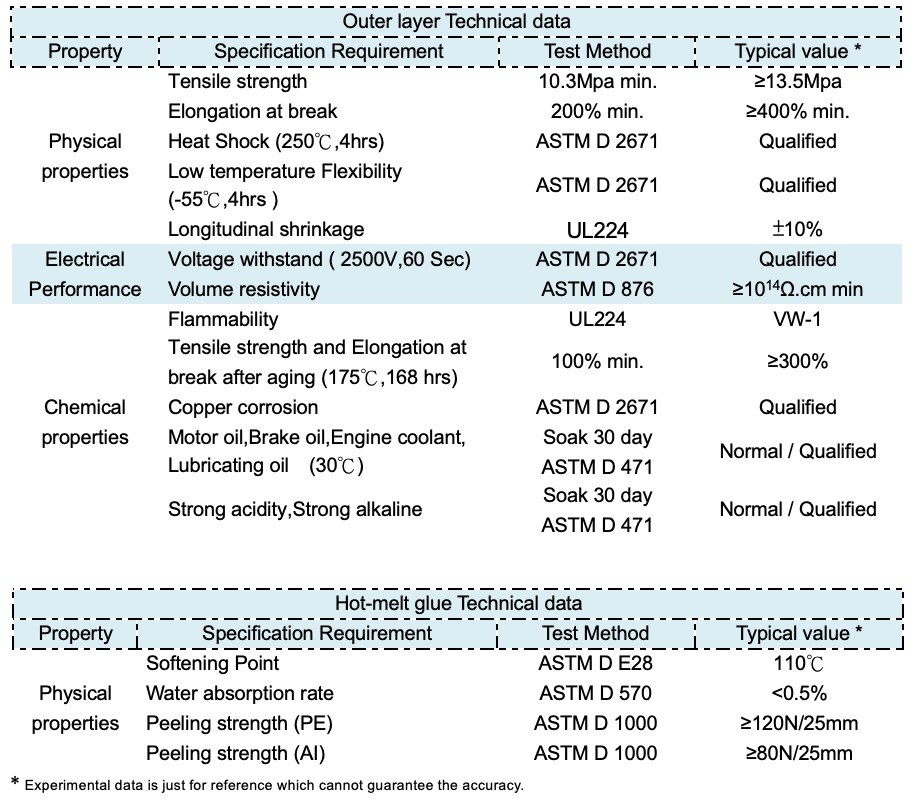

Technical data
