Fluoroplastic Heat Shrink Tubing

KYNAR-Semi-rigid PVDF heat shrinkable tubing

Throttle control line
KYNAR is a trademark of ARKEMA
DETAIL




KYNAR熱収縮スリーブの製造製造工程中である.すべてノギスを使用し、製造データを記録し、すべて精査. 二輪車鋼索導線専門科
During the manufacturing process of KYNAR heat shrink sleeves, all production data is recorded and inspected using calipers. Trong quá trình sản xuất ống co nhiệt KYNAR, tất cả dữ liệu sản xuất đều được ghi lại và kiểm tra bằng thước cặp.

KYNAR熱収縮スリーブ、押出技術(二輪車鋼索導線専門科) 台湾、聚塑新会社。 h@dwh.com.tw 我的生產製技術,持續專注,目前已經研發,生產控制的誤差值是0.01mm(非常高精密度的技術) KYNAR熱收縮套管的物理檢驗數據,誤差值是0.05,(神蹟的製造技術能力) 私たちの生産技術は、継続的に集中しており、現在では、製造と制御の誤差値が0.01mmに達しています(非常に高精度な技術)。 KYNAR熱収縮チューブの物理検査データにおける誤差値は0.05です(これはまさに奇跡的な製造技術力を示しています)
Our production technology is continuously focused, and we have now developed a manufacturing control error of 0.01mm (extremely high-precision technology). The physical testing data for KYNAR heat shrink tubing shows an error value of 0.05 (a miraculous level of manufacturing capability).
Công nghệ sản xuất của chúng tôi luôn được tập trung và hiện tại chúng tôi đã phát triển và kiểm soát sai số sản xuất ở mức 0,01mm (kỹ thuật có độ chính xác cực cao). Dữ liệu kiểm tra vật lý của ống co nhiệt KYNAR có sai số là 0,05 (một khả năng sản xuất kỳ diệu).

KYNAR熱収縮スリーブ、押出製造技術、台湾、聚塑新会社。 KYNAR熱収縮チューブの製造設備、製造速度、ロールの安定性、水質の清潔管理、現場環境の管理、設備の計測記録は、私たちの最も厳格な管理要求です。 (二輪車)バイク専用のスチールワイヤーロープ用熱収縮チューブの製造は、この保護チューブのために、高精度で厳格な検査と製造の安定性を維持する必要があります。
The manufacturing equipment for KYNAR heat shrink sleeves, production speed, roller stability, control of water quality, on-site environment control, and equipment instrument records are our highest standards of strict control. Manufacturing heat shrink sleeves for motorcycle-specific steel wire ropes requires high-precision inspections and maintaining production stability. KYNAR熱收縮套管的製造設備,生產速度,滾軸穩定度,水質潔淨的控制,現場環境的控制,設備儀表的紀錄.是我們最高級的嚴格控制要求. 製造摩托車專用的鋼絲繩熱收縮套管,這種保護套.需要高精密度的嚴格檢查與保持製造穩定度.
Thiết bị sản xuất ống co nhiệt KYNAR, tốc độ sản xuất, độ ổn định của con lăn, kiểm soát chất lượng nước, kiểm soát môi trường tại chỗ, và việc ghi chép thông số của thiết bị là những yêu cầu kiểm soát nghiêm ngặt cao nhất của chúng tôi. Việc sản xuất ống co nhiệt cho cáp thép chuyên dụng cho xe máy, loại bảo vệ này yêu cầu kiểm tra nghiêm ngặt với độ chính xác cao và duy trì sự ổn định trong sản xuất.

Applications

KYNAR Semi-rigid PVDF  heat shrinkable tubing

Made of irradiated cross-linked special fluoropolymerr PVDF, it has excellent chemical corrosion resistance and solvent resistance performance, and is a kind of strong, semi-hard, thin-walled heat- shrinkable tube.

Soft, military-standard materials are also available.

Commonly used for those request high temperature and abrasion resistance.

Insulation protection of aviation aerospace, radar, locomotive cables and cable joint and components

Window control line, gear control line, throttle control line, increase smooth friction ability

Operating temperature :  -55℃ ~ 175℃


Characteristic

Shrinkage ratio 2:1

Excellent acid and alkali resistance performance and chemical solvent properties

Minimum fully recovery temperature : 175˚C

Semi-rigid, thin wall, good toughness, insulation

Excellent performance of electrical insulation, weather resistance, anti-UV aging

Meet SAE AMS-DTL-23053/8 requirement

Meet RoHS,UL requirement

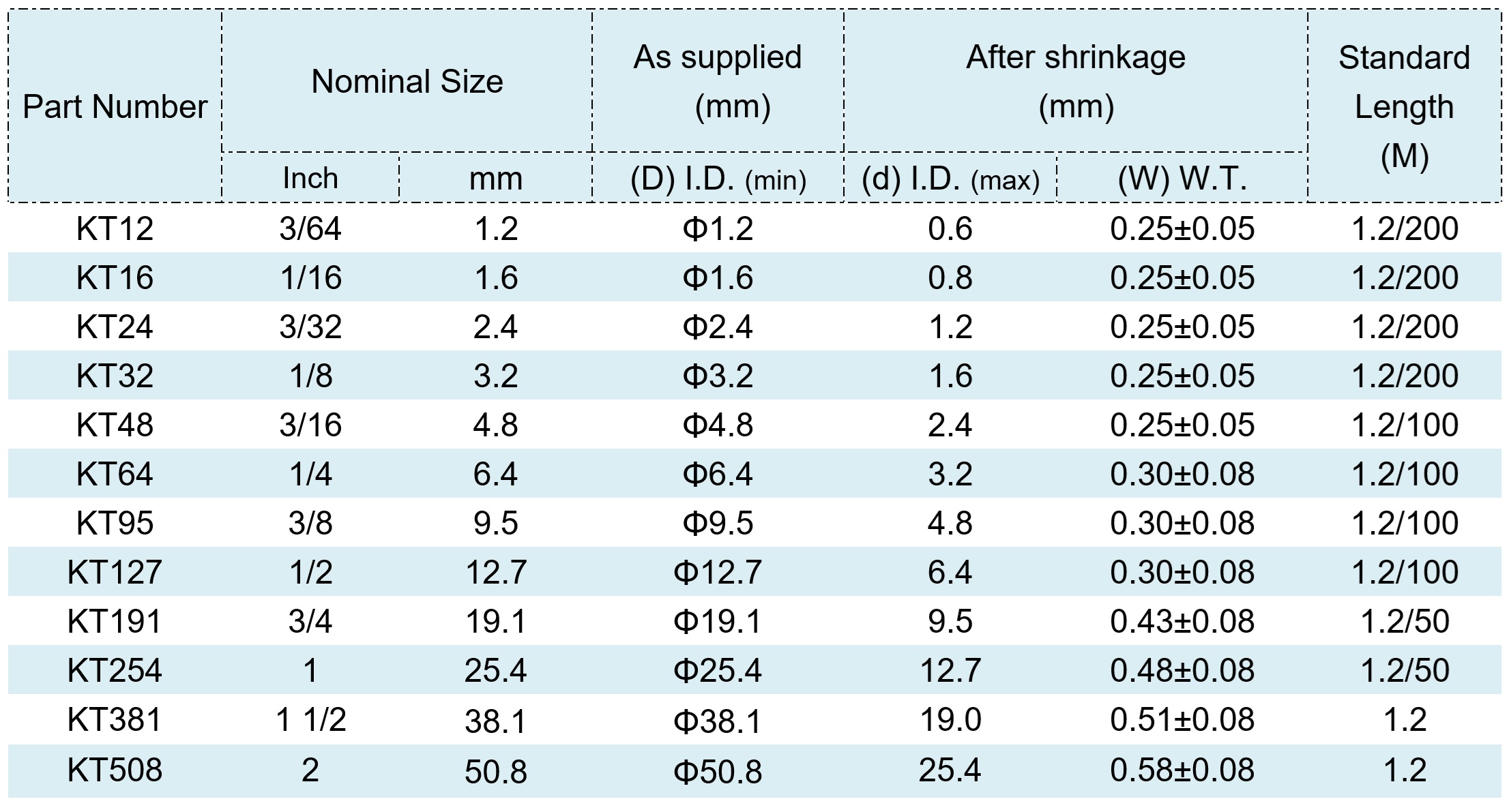

Specification (Standard color:Black/Clear)



Technical data
